- Agnicut Machine Tool is a Manufacturer and service provider of CNC Plasma, Laser, Waterjet & Oxy Fuel Cutting Machine.
Products

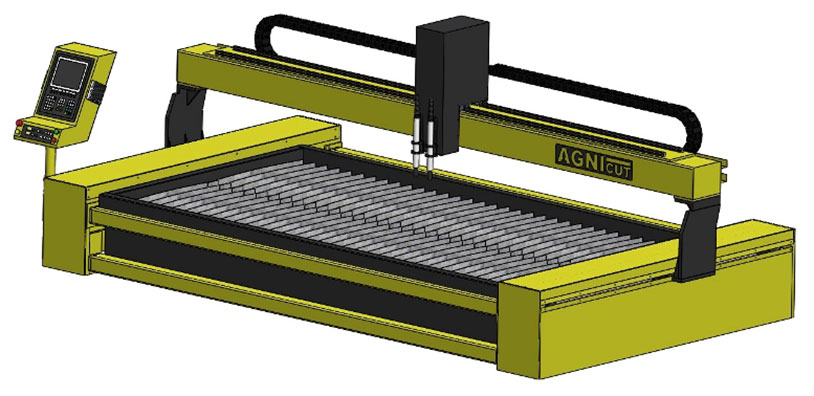

Machine - Table Model:
Range
- X axis: 1.25M to 1.5M
- Y axis: 2.5M to 3M
Feature
- High rapid speed
- Compact & Rigid construction
Application Industries
- Signage, Small Scale Fabrication

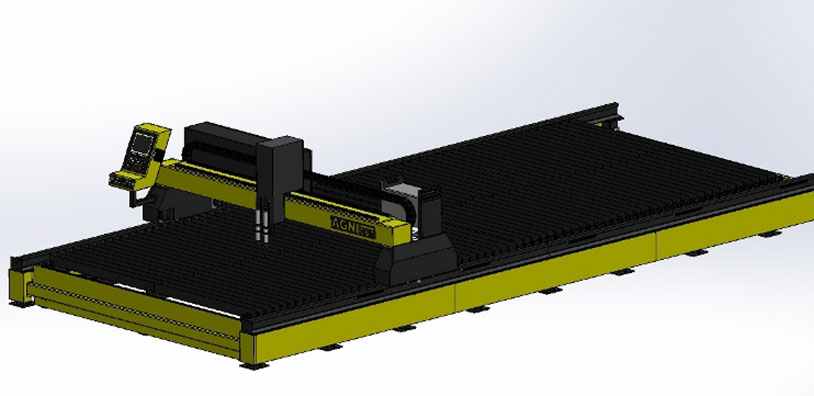

Machine - Gantry Model:
Range
- X axis: 1.5M to 4M
- Y axis: 6M to 20M
Feature
- Easy Loading & Unloading
- Rigid & Stable Structure
Application Industries
- Fabrication, Manufacturing

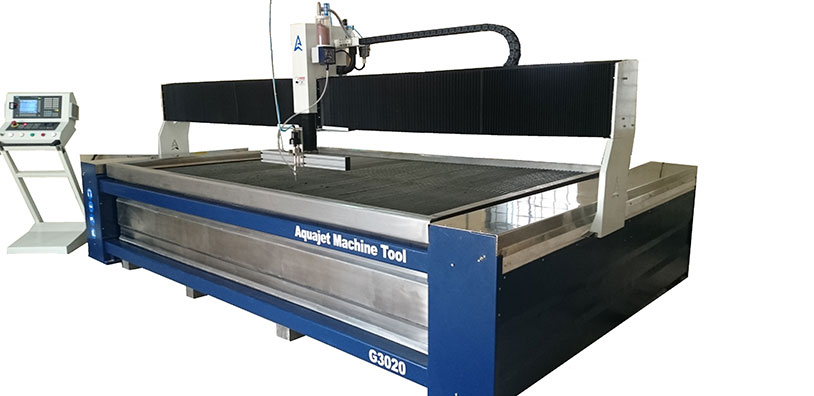

Aquajet Machine Tool design and manufacture CNC water jet cutting machine with an exposure to German Engineering.
Aquajet Machine tool offers various machine models ranging from 1mtr x 1 mtr to 3mtr x 6 mtr. The most popular Gantry models are G3020 and G3015 which come with single or multiple heads.
Also we make economical cantilever mode C1010 and C2513.
Apart from the standard machine we also design and manufacture customized model according to customer requirement.
Both 3 axis and 5 axis systems available to cater to wide range of applications in various industries.
Technical Data:
Construction: Gantry / Cantilever
Frame: Rigid Welded Structure
Cutting Table/Tank: Stainless Steel
Motion System: Ballscrew

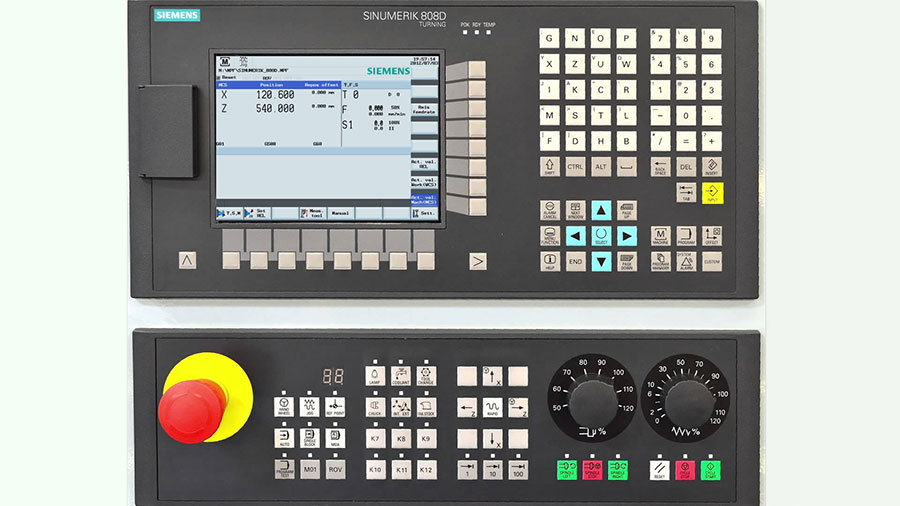

CNC control system: Siemens

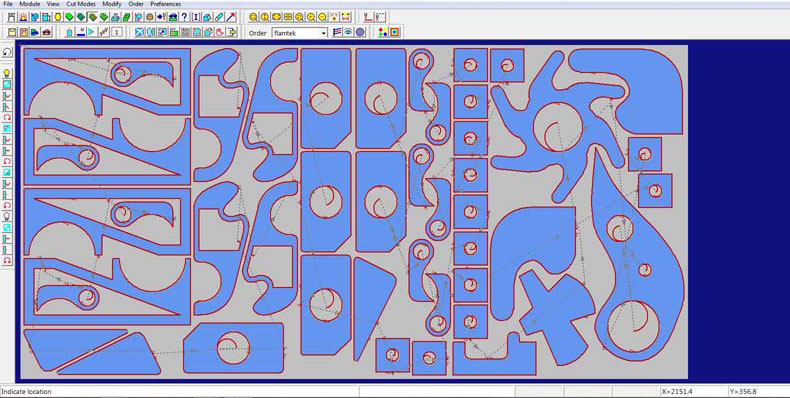

CAM Software: Lantek / Most2D / Igems
Axes Travel Speed: up to 15 m/min
Maximum Table Load: up to 1500 kg/m2
Positioning Accuracy: ± 0.050 mm/m
Repetition Accuracy: ± 0.050 mm
